RFID-machine

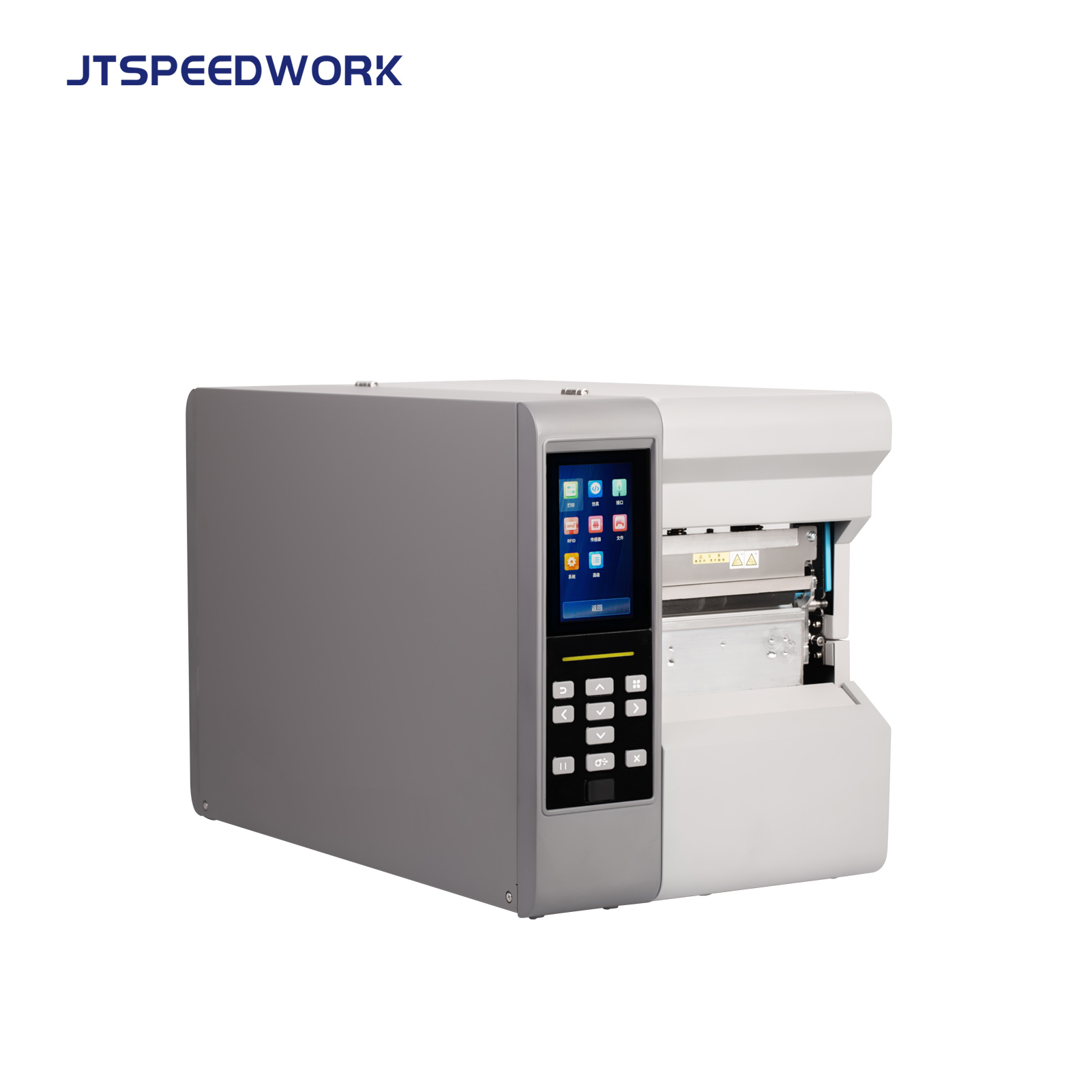

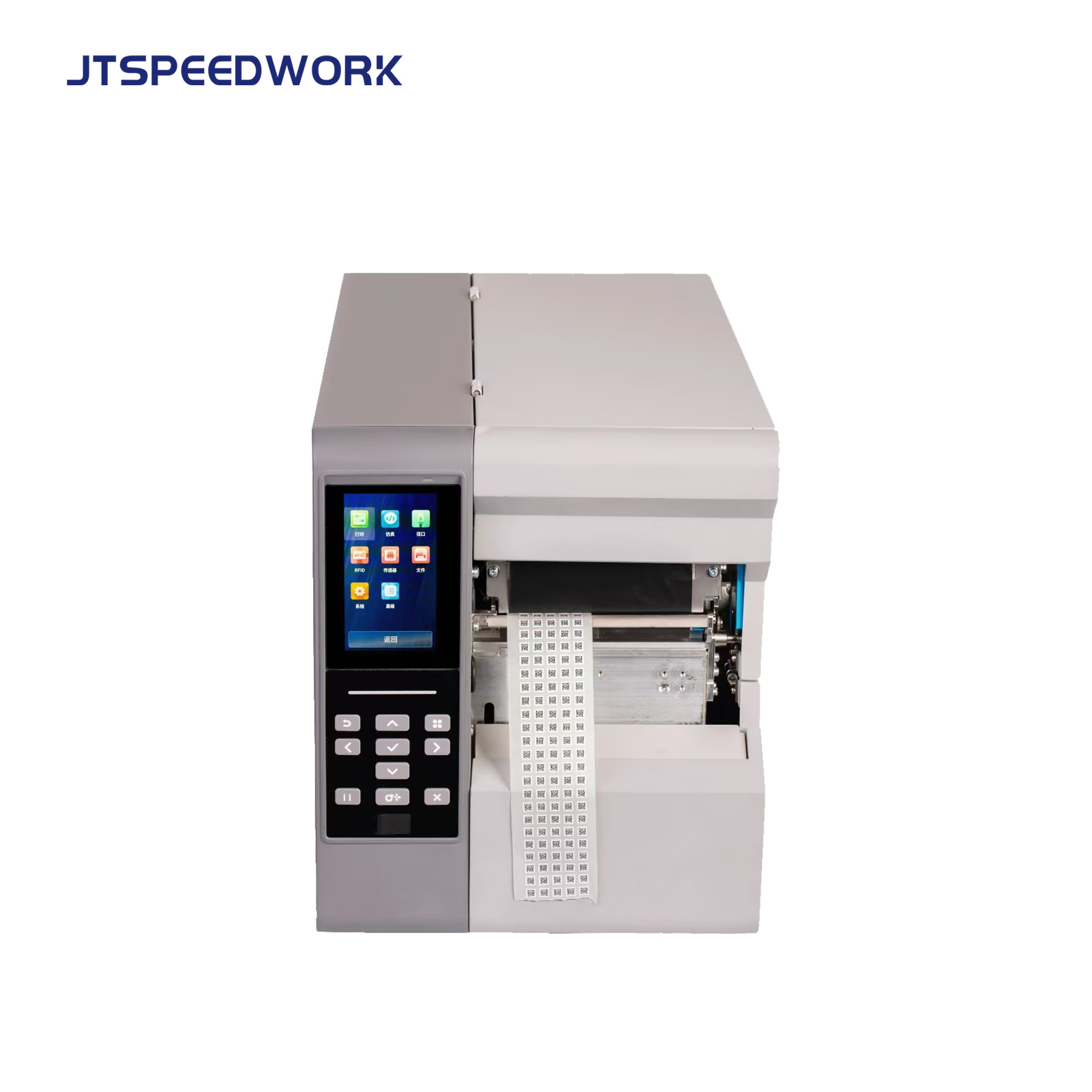

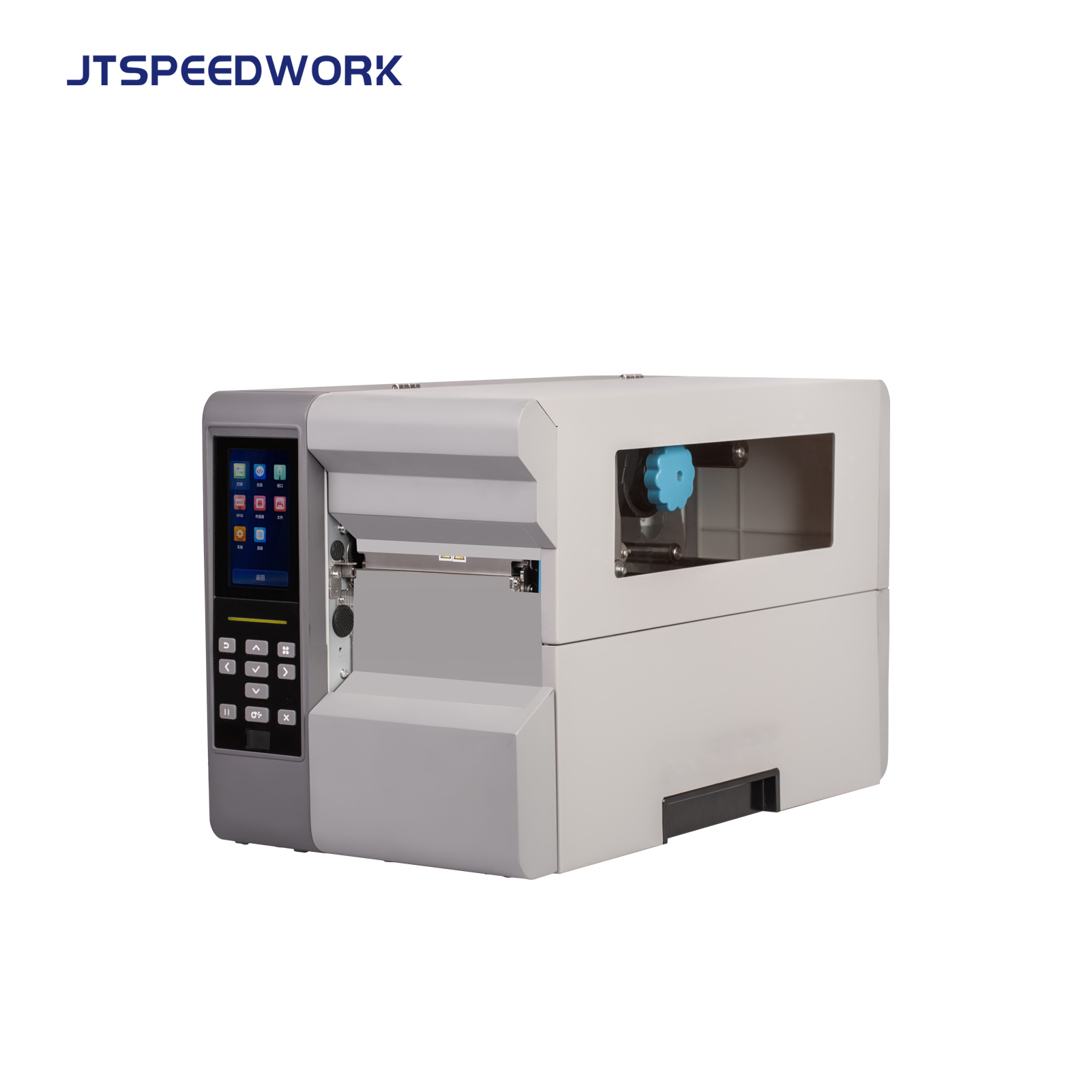

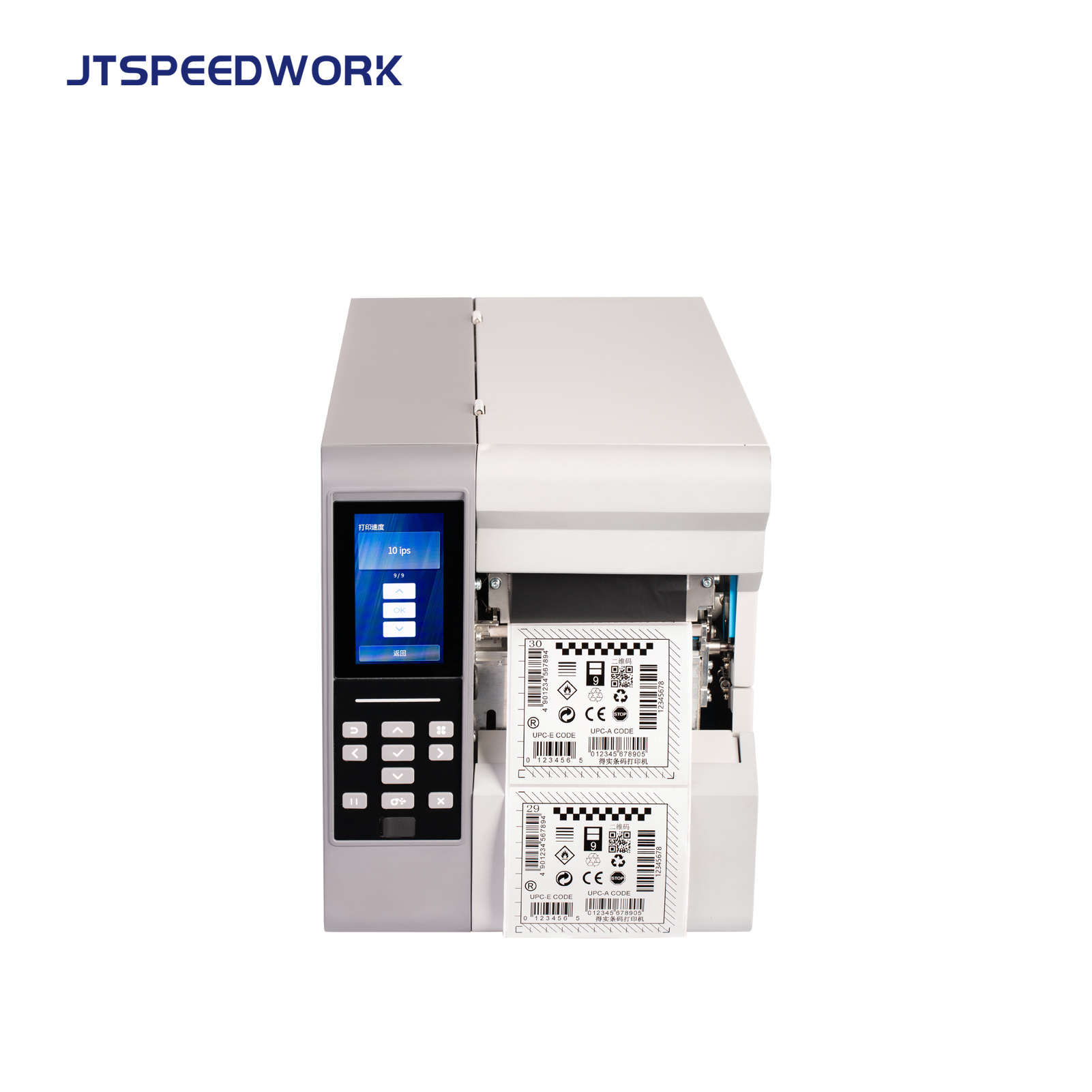

Name: JT-DL750pro 300dpi Industrial UHF RFID Label Printer | Print & Encode RFID Tags for Warehouse Apparel Asset Tracking
Availability: InStock

Thuis RFID-machine

JT-DL750pro 300dpi Industrial UHF RFID Label Printer | Print & Encode RFID Tags for Warehouse Apparel Asset Tracking

The user friendly design of the printer allows ribbon length up to 450 meters and roll paper core diameter up to 203 mm/8 inch, which provides for fewer operator interventions.

In addition to the Ethernet interface, the DL750Pro also can be configured with a variety of optional accessories, making it appropriate for use in many industries, including logistics, hospitality, food service and healthcare. The DL750Pro is designed with a unique paper tearing blade providing for a tear off in either direction, up or down, which ever preferred by the operator. It also provides an adjustable black mark detection sensor, that can adapt to the various black mark using media available and the 300 dpi print head guarantees crisp results.

Artikelnummer :
JT-DL750pro
Kleur :
White
Print method :
Direct thermal or thermal transfer
Resolution :
300 dpi
Print width :
105.7 mm / 4,16 inch
Interfaces :
USB 2.0, Ethernet 10/100
Ribbon :
Width: 25,4 - 110 mm / 1“ - 4,5“; Length: 450 m Core diameter: 1“ (25,47 mm); Outside diameter: 70 mm / 2,75“

Vraag nu informatie aan

Download

Item No.	JT-DL750pro
Print Parameter		Physical Spec.
Print method	Direct thermal/Thermal transfer printing	Dimensions	267x 480x 328 mm(WxDxH)
Print width	105.7 mm / 4,16 inch	Casing Color	White
Print speed	Max. 10 ips(300dpi)	Weight	19.1kg
Print head	Dot pitch:0.125mm	Operating condition	0~45℃ 20%~95%RH (non-condensing)
Resolution	300DPIx300DPI	Storage condition	-20~60℃/≤95%RH(non-condensing)
Barcodes		UHF RFID
1D	ZPL:Code11;Interleaved 2 of 5;Code 39;Code 49;Planet Code;EAN-8;EAN-13;UPC-E;UPC-A;Code 93;Code 128;Industrial 2 of 5;Standard 2 of 5;Codabar;MSI;Plessey EPL:EAN-8;EAN-13;UPC-E;UPC-A;Code 39;Code 93;Code 128;Interleaved 2 of 5	RFID tag writing method	Print first and then write, which can support printing and writing to EPC at the same time, only reading and writing EPC, printing only, and reading label TID, etc.
2D	ZPL:PDF417;CODABLOCK;Maxicode;Aztec;QR Code;Data Matrix;EPL:PDF417;Maxicode;QR Code; Data Matrix;	Support RFID standards	860-960MHz; support ISO18000-6C, EPC Gen2
		Supported label types	Supports ordinary self-adhesive RFID and flexible anti-metal tags below 2mm *Special tags depend on the specific chip
Control Panel		Interface
Key	Four keys: Feed, Return, Pause, Cancel	Standard	USB (2 .0 Full Speed), Ethernet (10/100),USB host*2 (1 front,1 rear),RS232 serial port
LED indicator	One LED: Power	Standard
Screen	LCD	Optional	Parallel Centronics (IEEE-1284)
Detect Function		Memory
Standard sensors	Black mark sensor, Media sensor, Ribbon sensor,Machinery sensor	SDRAM	256 MB
Optional kit sensor	Label peel-off sensor	FLASH	512 MB
Emulation		Software
Zebra	ZPL,EPL,TSPL	Driver(Windows 32bit/64bit), Bartender,SDK system
Reliability		Graphics
TPH life time	150km(Condition: use specific thermal roll paper and the print rateis 12%)	Graphics processing	Graphics (Monochrome PCX, BMP) can be downloadedinto SDRAM.
Fonts		Media Handling
Code Pages	EPL:PC437;PC850;PC852;PC860;PC863;PC865;PC857;PC861;PC862;PC855;PC866;PC737;PC851; PC869;Windows1252;Windows1250;Windows1251;Windows1253;Windows1254;Windows1255 ZPL:PC850,windows 1250, windows 1252, windows 1251,windows 1253, windows 1254, windows 1256	Media Spec.	Tearing paper (width):20-114 mm,(length)18-2540 mm;Cutting blade (width):20-114 mm,(length)18-2540mm;Peel (width):20mm-114mm,(length) 6-2540mm;Rewind (width):20mm-114mm,(length) 6-2540mm
Alphanumeric	Resident single byte(ZPL): Font A, Font B, Font D, Font E,Fon t F, Font G, Font H, Fon t V0, Font GS, Font P,Font Q,Font R, Font S, Font T, Font U, Font V	Media cut	Tear bar, auto-cutter, peeler
User-defined	User-defined fonts can be downloaded into FLASH,SDRAM.	Media type	Roll paper, fanfold paper (continuous, non-continuous, continuous tag, wrist-band,normal media and all sorts of receipts)
Chinese	GB18030 24×24(Simplified/Traditional Chinese)
Scalable/Rotation	Zoom in 1~8 times in vertical or horizontal, rotate by 0°,90°,180°,270°.
Certification		Optional kit
CE,FCC		Cutter, Peeler
Power Supply		Ribbon
	External power adapter	OD	Max.φ70mm(2.7 in)
Input	AC 100V-240V,50-60Hz	ID	φ25mm(1 in)
Output	DC 24V: 1.5A	Length	Max. 450m
		Width	25.4~114mm
